Product No : 30RS
Product Description

New generation direct connecting type air conditioning system

  • Adopt the BS-630 high-efficiency compressor, the main body made of the aluminum alloy die-casting, concurrently with the light and the good radiation characteristic.
  • The air conditioning system of the external shell adopts high-quality powder coating spraying.
  • R -134a refrigerant is used in conformity with the international environmental protection standards.
  • The condenser uses anti-corrosion and high-density pre-coating type is adopted (blue hydrophilic aluminium fin-stock).
  • The condenser matches based on"SUPER COOLER ," a super condenser design.
  • The control panel provides the trouble code prompt function; which can be control system condition certainly.
  • We are the first QS9000/ISO9002 certified company in the same trade in Taiwan.
  • Patent of our company：ZL 96 2 2644.0/ZL 96 2 18366.0/5934093/ZL 2005 2 0017347.3/ZL 2005 2 0017348.8/ZL  2006  2 0137282.0/106187/M 273469/M 274266/M 293175.


Model of air conditioning 30RS Safety equipment Soluble plug melting point at 105 ± 2 ℃ High-pressure switch :380 ± 10psi-ON,Low-pressure switch :7 ± 3psi-ON （ ON is the compressor to stop operating ）
Energy efficiency ratio 31000 kcal / hr
124000 BTU / hr
Wind volume of the evaporator 5500 m3 / hr Model of the compressor BS - 630
Wind volume of the condenser 7200 m3 / hr Weight of the compressor 54kg(Include belt pulley)
Refrigerant / Volume R 134a/6.0kg( Include the lower 7.0kg) Number of cylinder W-6
Generator standard /Weight DC28V-140A/17kg Capacity of exhaust 618c.c.
Consume the electric current L46A M50A H55A Freezing oil / Capacity SW100 / 1750c.c.
Weight of air conditioning 132kg Speed of compressor 500~3000rpm

Measurement of the 30RS air conditioning system

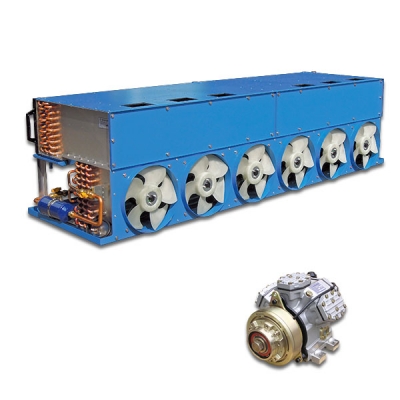

30RS Air conditioning system


The diagram of installing for the 30RS bus
