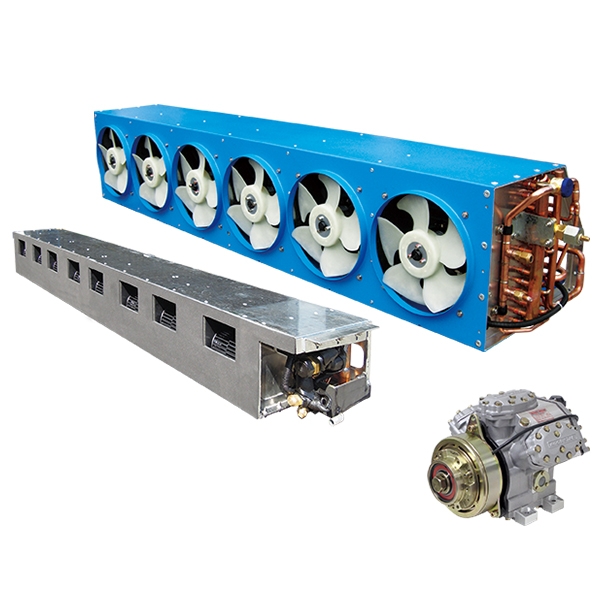

350RD
| Cooling capacity | 33600 kcal/h | Safety equipment | Soluble plug melting point at 105 ± 2 ℃ High-pressure switch :380 ± 10psi-ON, Low-pressure switch :7 ± 3psi-ON （ ON is the compressor to stop operating ） | |
|---|---|---|---|---|
| 1344000 /BTU/h | ||||
| Wind volume of the evaporator | 4900 m3 / hr | |||
| Wind volume of the condenser | 8500 m3 / hr | Model of the compressor | KS - 750 | |
| Refrigerant / Volume | R 134a/7.0kg | Capacity of exhaust | 755c.c. | |
| Consume the electric current | Lo:46A Me:52A Hi:60A | Number of cylinder | W-6 | |
| Generator standard /Weight | DC 28V-140A/17kg | Freezing oil / Capacity | SW100 / 1700c.c. | |
| Weight | Condenser | 85kg | Speed of compressor | 500~3000rpm |
| Evaportor | 36kg×2 | Weight of the compressor | 55kg(Include belt pulley) | |

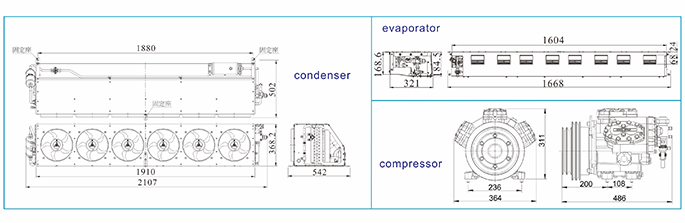

35CD condenser

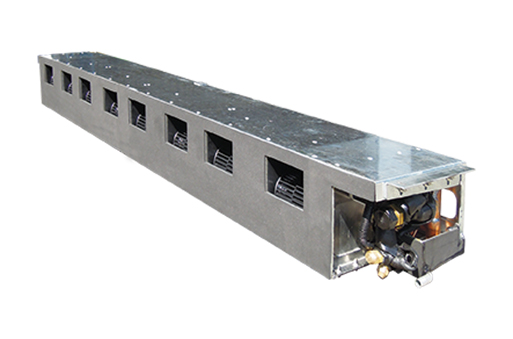

LEV147 Evaporator
